Flow Meters

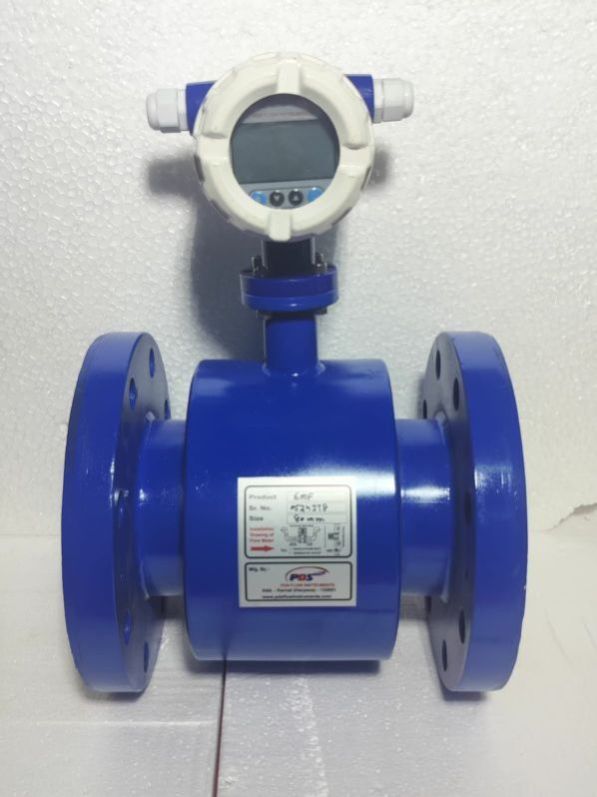

Our MICROMAG flow meter is based on famous principle of Faraday's Law of Electro- magnatic Induction which statusthat there is the production of an electromotive force (i.e., voltage) across conductor (i.e.electrodes) in a changing magnetic field whenever a conductor (conductive liquid in this case) moving through it.

      E = (B*V*D)

This flow meter is used in a wide range of industrial application Milk Plant Dairy

The electromagnetic flowmeter uses Faraday\'s Law of electromagnetic induction to measure the process flow. When an electrically conductive fluid flows in the pipe, an electrode voltage E is induced between a pair of electrodes placed at right angles to the direction of magnetic field.

Features: Flow measurement of various acid-base salt solutions, clean water, seawater, and food-grade liquids, PTFE/ rubber

Application: industrial production process control, energy measurement, environmental protection, sewage treatment and other fields. It can output (4-20) mA current signal, pulse signal, etc., which can be matched with display and recording instruments, totalizers or regulators for flow detection, integration, adjustment and control.

 Flow measurement of various acid-base salt solutions, clean water, seawater, and food-grade liquids, PTFE/ rubber

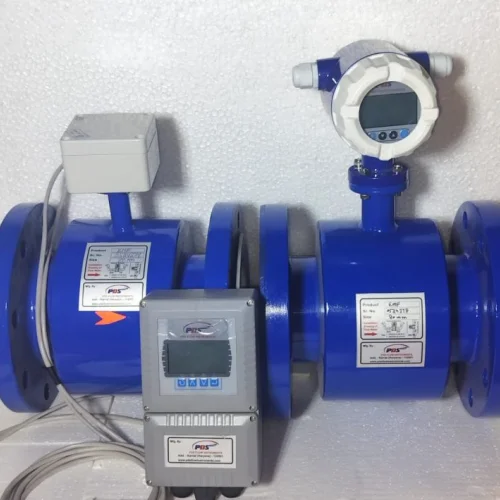

The Electromagnetic Flow Meter with Remote Display is used to measure the Flow Rate of Fluid which have conductive .It work on the basis of Faradays Law of Electromagnetic induction . this flow Meter contain the Sensor to measure the Flow rate of liquid

The Electromagnetic Flow Meter with Telemetry System is used by industries according to CGWA guidlines The Flow meter measure the flow rate of the water and with the help of telemetry system the Data of Flow meter can be seen on Mobile application or computer system and we using this technology daily / weekly / monthly consumption report can be taken .

PDS Make Electromagnetic Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux

Feature: It is suitable for water, sewage, acid, strong alkali and other liquid flow detection with conductivity above 5us/cm. The change of conductivity does not affect the change of performance, and it is extremely adaptable to complex changes in fluids.

Application: It is especially suitable for flow measurement of water supply and drainage pipelines. 4-20mA current output; Pulse output can be setAS485 interface, HART communication protocol, MODBUS protocol

Open Channel flow meters measure level, flow rate and total volume of water flowing through weirs, flumes, channels and partially filled pipes. These meters perform best where the sediment does not build up.

Feature: High quality, beautiful price, easy to insta11,220VAC 4-20mA /485RS/pulse frequency output

Application: industrial production process control, energy measurement, environmental protection, sewage treatment and other fields meter.

The ultrasonic flow meter works on the principle that it uses sound waves to resolve the velocity of the liquid in the pipe ..Easy to install and high accuracy

Features: Stainless steel electromagnetic flowmeter is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity. The sensor-induced voltage signal has a linear relationship with the average flow rate, so the measurement accuracy is high. The sensor part of the stainless steel electromagnetic flowmeter only has the inner lining and electrode in contact with the liquid to be measured., long as the electrode and inner lining material are selected reasonably, it can resist corrosion and wear.

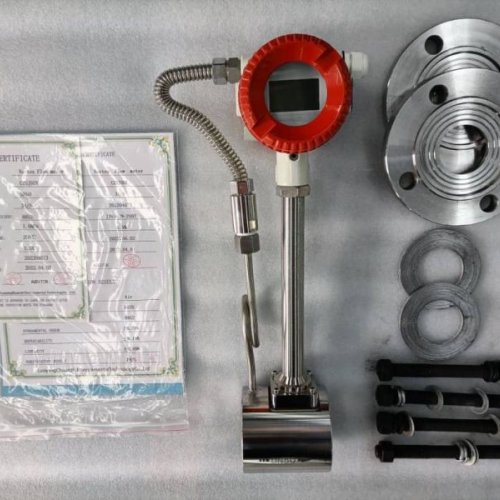

A steam flow meter measures the amount of steam that passes through it and can be used to evaluate system performance. Steam flow meters can help assess boiler performance, calculate boiler efficiency, and track the amount of steam required by a system. They can also provide a measurement signal for the boiler control system in some systems

Feature: Small size, lightweight, intuitive display reading, clear reading, high reliability, no influence from the external power supply, lightning resistance, and low package cost.

Application: Liquid flow measurement in petroleum, chemical, light industry, food and other industries. 24VDC/battery, Cast aluminum, 4-20mA /485RS, pulse frequency output Support to carry GPRS unlimited remote transmission system All kinds of models can be made.

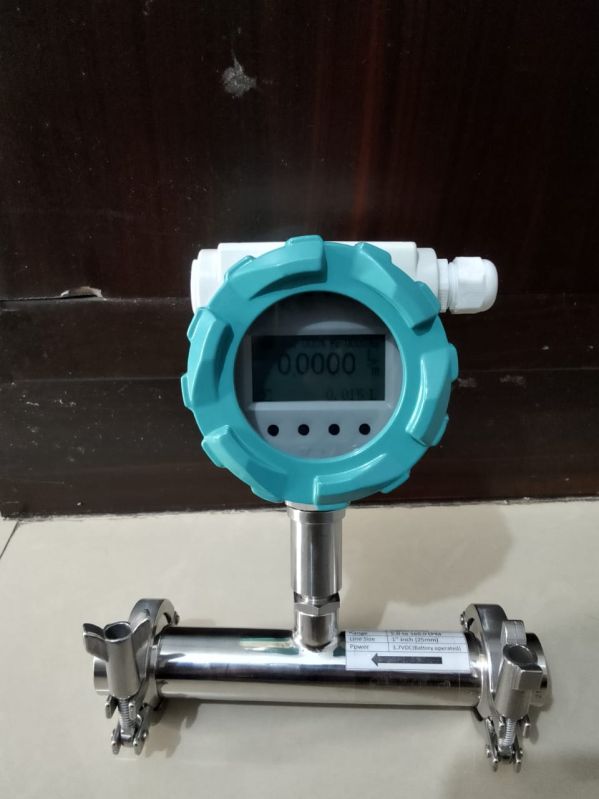

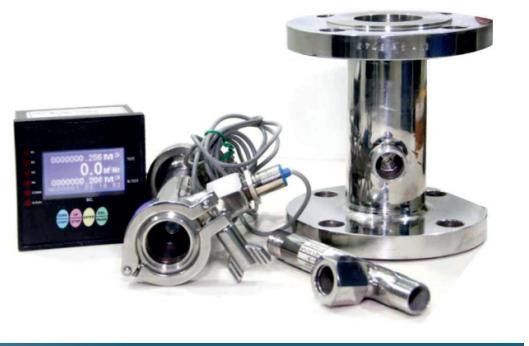

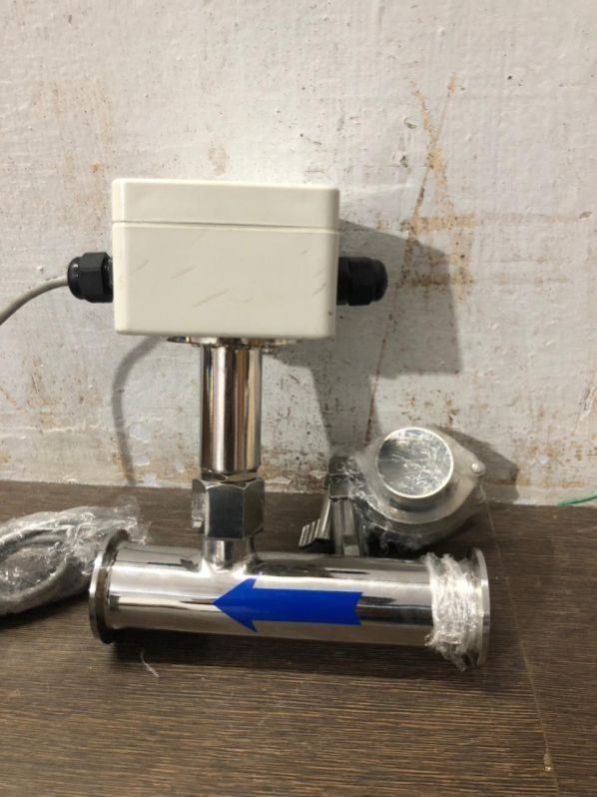

Turbine flow meters are precision instruments used to measure the flow rate of liquids or gases within a pipeline they operstes based on the principle of fluid mechanics, utilizing a turbine rotor to determine the volumetric flow. These meters are particularly useful in application requiring high accuracy and reliability

Feature: Below 250 degrees! Temperature and pressure in one! Temperature and pressure compensation! 4-20 ma output! 24 v input! English and Chinese menu! Conventional material: body 304-F carbon steel, flange bolts, 316L material on the basis of 304 markup 30%; .1 kinds of models can be made.

Application: The flow measurement of pipeline medium fluid, such as gas, liquid, steam and other mediums It is hardly affected by fluid density, pressure, temperature, viscosity and other parameters when measuring the volume flow under working conditions.
